| HARDWARE |
| Interface |

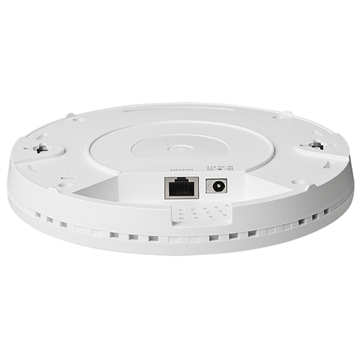

1 x RJ45 10/100/1000Mbps Ethernet Port (PoE in) |
| Button |
Reset button |
| LED Indicator |
Power LED, Diag LED |
| Antenna |
Type: 2 x Built-In PIFA (2 dual-band antenna)
Gain: 2.2dBi (2.4GHz), 2.9dBi (5GHz) Max. |
| Power |
DC: 12V / 1A
802.3af (PoE Injector Optional) |
| Power Consumption |
12W (Full Loading) |
| Power Saving |
802.3az |
| Mounting |
Ceiling |
| Housing |
UL94-5VB Flammability Rating |
| Dimension |
176.29 (D) x 32.75 (H) mm |
| Weight |
372g |
| WIRELESS |
| Standard |
802.11 a/ b/ g/ n/ ac/ ax Concurrent Dual-Band |
| Frequency Band |
•Radio ?: 802.11b/g/n/ax 2.412~2.484(GHz)
•Radio ?: 802.11a/n/ac/ax 5.15~5.25(GHz), 5.25~5.35(GHz), 5.470~5.725(GHz)
(The supported frequency band is restricted by local regulations.) |
| Maximum Data Speed |
2.4GHz: 574Mbps
5GHz: 1201Mbps |
| Operation Channels |
•2.4GHz :
US/Canada 1-11; 2.412 ~ 2.462GHz
Europe 1-13; 2.412 ~ 2.472GHz
•5GHz : Country dependent for the following ranges:
US/Canada:
Band 1: 36, 40, 44, 48; 5.180 ~ 5.240GHz
Band 4:149, 153, 157, 161, 165; 5.745 ~ 5.825GHz
Europe:
Band 1: 36, 40, 44, 48; 5.180 ~ 5.240GHz |
| Maximum Transmit Power |
•802.11b
17dBm@1Mbps,
17dBm@11Mbps
•802.11g
17dBm@6Mbps,
15dBm@54Mbps
•802.11n (2.4G)
17dBm@MCS0(HT20),
15dBm@MCS7(HT20),
12dBm@MCS9(HT40)
•802.11ax (2.4G)
9dBm@MCS11 (HT40),
15dBm@MCS4/12,
15dBm@MCS5/13,
14dBm@MCS6/14,
14dBm@MCS7/15
•802.11a
17dBm@6Mbps,
16dBm@54Mbps
•802.11n(5G)
17dBm@MCS0 (HT20),
15dBm@MCS7 (HT20)
•802.11ac
17dBm@MCS0 (VHT80),
15dBm@MCS7 (VHT80),
? 14dBm@MCS9 (VHT80)
•802.11ax (5G)
10dBm@MCS11 (HT80)
(CE: 20dBm or lower, FCC: 23dBm or lower) |
| Receiver Sensitivity |
•802.11b :
≤-88dBm@1Mbps ,
≤-86dBm@11Mbps
•802.11g :
≤-88dBm@6Mbps ,
≤-71dBm@54Mbps
•802.11gn (2.4G) :
≤-88dBm@MCS0 ,
≤-68dBm@MCS7m ,
≤-60dBm@MCS9
•802.11ax (2.4G) :
≤-53dBm@MCS11
•802.11a:
≤-87dBm@6Mbp ,
≤-68dBm@54Mbps
•802.11n(5G) :
≤-87dBm@MCS0 ,
≤-68dBm@MCS7
•802.11ac :
≤ -56dBm@MCS9
•802.11a (5G) :
≤ -50dBm@MCS11 |
| Concurrent Clients |
Up to 100 Per Radio |
| No. of SSIDs? |
16 (2.4GHz) + 16 (5GHz) |
| 802.11 r/k Fast Roaming |
Y |
| Band Steering |
Y |
| AirTime Fariness |
Y |
| Beamforming |
Y |
| SOFTWARE |
| Wireless Mode |
AP / WDS AP / WDS Bridge |
| 802.1q VLAN |
Y (VID = 1-4095) |
| Spanning Tree |
STP |
| QoS |
WMM (802.11e)
Max associated station number |
| Pass-Through |
IPv6 and VPN (PPTP, L2TP/IPsec) |
| DSCP (802.1p) |
Y |
| Multicast Rate up to 54Mbps |
Y |
| SECURITY |
| Encryption |
WEP / WPA2-AES / WPA3 |
| Wireless L2 Isolation |
Y |
| Station Isolation |
Y |
| IEEE 802.1x Authenticator |
Y |
| EAP Authentication |
PEAP |
| Hidden SSID |
Y |
| MAC Address Filter |
Y |
| Wireless STA |
Y |
| Rogue AP Detection (w/ NMS) |
Y |
| MANAGEMENT |
| Deployment |
Standalone (AP mode)
Master AP mode: Can manage 16 Edimax CAX1800 APs with NMS
Managed AP mode: Be managed by Edimax CAX1800 Master AP with NMS |
| Configuration |
HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH) |
| RADIUS Server |
Built-In |
| Auto-Channel |
Y |
| Private MIB |
Y |
| OTHERS |
| Certification |
CE, FCC |
| Environmental Condition |
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 90% or Less |
| Package Content |
AX1800 Ceiling Mount PoE Access Point
Ceiling-Mount & T-rail Mount Bracket Kit
Ethernet Cable
Quick Installation Guide |
| Optional Accessory |
GP-101IT IEEE802.3at PoE Injector |
